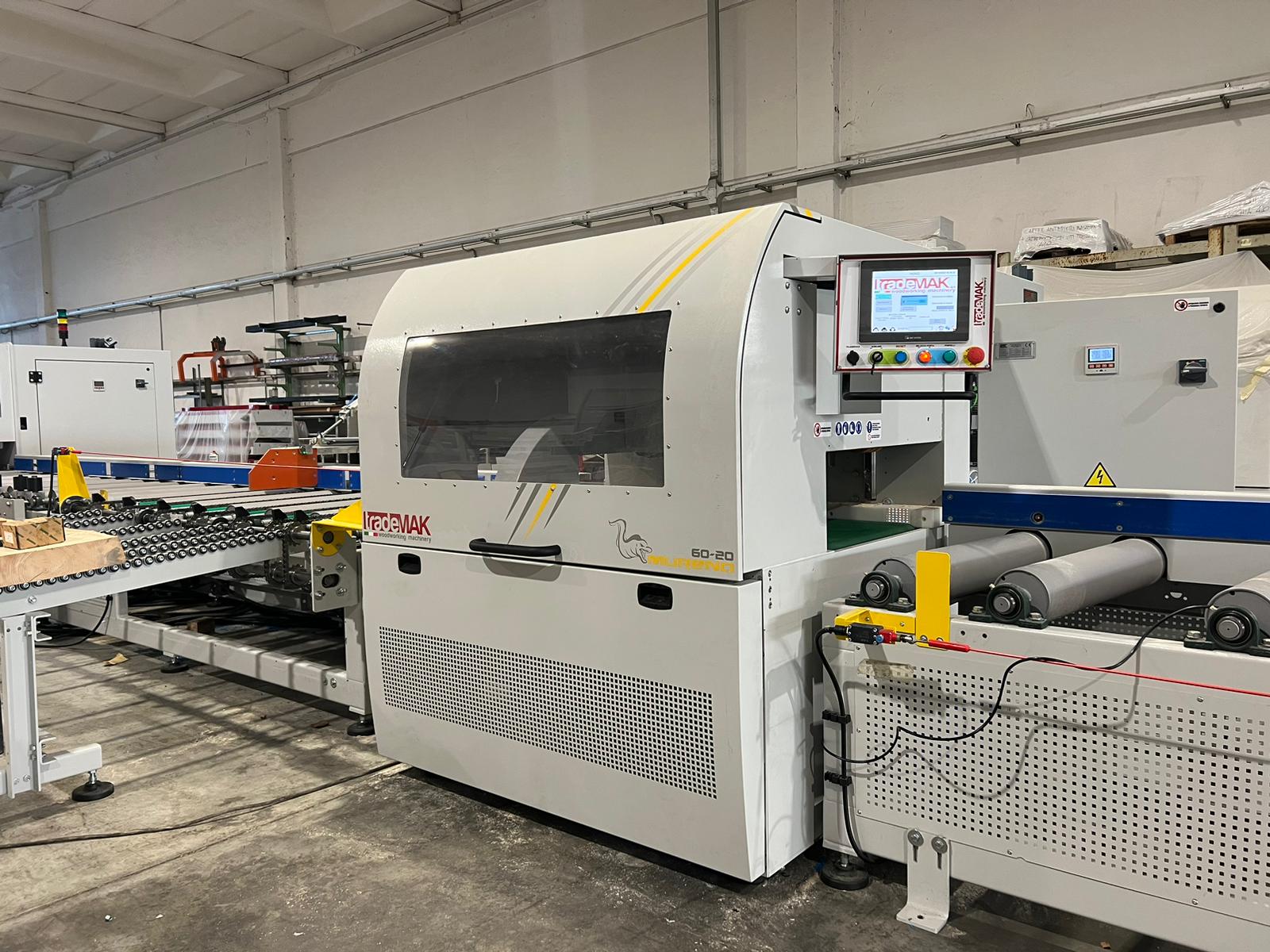

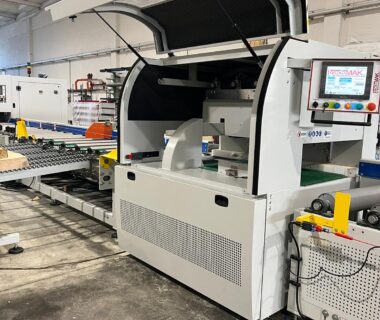

MURENA 60-20 automatic miter saw: a masterpiece of innovation and technology.
Max width cutting up to 600 mm height up to 200mm, with special arm controlled according to the cut to be made, mounts a circular blade with a diameter of 700mm (hole diameter 40mm).
Its feed speed is up to 50 m/min and it has a positioning sensitivity that splits the millimetre!
Furthermore, the activation of the cutting unit is managed by Brushless motors, and this allows, among the many advantages, a reduction in friction during the start-up phase.
Savings, but also cleanliness and, therefore, safety: its 120mm suction mouth has a flow rate of 600 cubic meters per hour and guarantees a cutting area that is always free from shavings or various scraps.
Completely customizable cutting lists, with the modern 10.2″ touch screen programmer, the MURENA 60-20 automatic miter saw is covered by remote assistance via ethernet or SIM-card, and it is possible to prepare it for industry 4.0.
Machine of great performance and from the line, very fast programmable electronic reading, one of a kind.
Compatible and combinable with our products (such as motorized and idle roller conveyors), the MURENA 60-20 automatic miter saw gives a clean cut to your problems!
MAIN FEATURES:
Max cutting width mm 600
Max cutting height 200 mm
Circular blade diameter mm 700
Blade hole diameter mm 40
Feed speed mt / min 0 – 50
Positioning accuracy 1 mm
Motor power Kw 15 (Optional 18.5 Kw)
Drive of the cutting unit managed by Brushless motors
Suction mouth Ø 120 mm
Suction flow rate m3 / h 600
Worktop height 850 +/- 20 mm
10.2 “touch-screen” programmer
Creation of cutting lists on the machine
Teleservice via ethernet or SIM-card
Industry 4.0 ready
Overall dimensions 1520x2545xh1808mm
MACHINE EQUIPMENT:
Set of service keys
Machine use and maintenance manual
Certification CE
