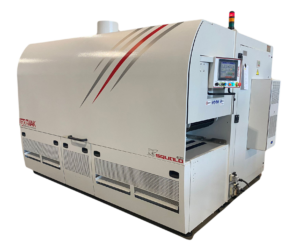

2-shaft Multi-blade “SQUALO 625/630” Circular Saw: Precision and reliability, MAXI format!
Maximum workable width 600mm, height 250mm for the 625 and 300mm for the 630. The 2-shaft Multi-blade “SQUALO 625/630” Circular Saw is indispensable in a modern sawmill to optimize production.
Ideal for the production of strips, squares, sawn timber, profiles, trimmed boards, prisms, boards, elements for pallets.
TECHNICAL SPECIFICATION:
| Description | Details |
| Conveyor belt width | mm 620 |
| Input roller conveyors width | mm 620 |
| Output roller conveyors width | mm 720 |
| Max. saw unit width | mm 590 |
| Max. cutting height | mm 250-300 |
| Min. working length | mm 1000-1200 |
| Max. clearance width | mm 800 |
| Blades shaft diameter | mm 80 |
| Max. circular blades diameter | mm 450-470 |
| Blade hole diameter | mm 100 |
| Blade shaft speed | rpm 3.800 |
| Feeding speed m/min. | mt/min 3 – 36 |
| Weight | 10/11.000Kg |11/12.000 Kg |
| Overall dimensions | mod. 625: mm 2720x2615x2105h mod. 630: mm 2720x2665x2205h |
Compatible and combinable with our products (such as the pneumatic roller conveyor), the 2-shaft Multi-blade “SQUALO 625/630” Circular Saw is the ideal solution, in MAXI format!
Some reasons to choose our Multiblades:
- from the smallest to the largest, all our machines are designed with advanced, innovative and technological construction systems;
- special carpet in ductile iron with a new design and easy to maintain;
- Floor interrupted in the cutting area, to avoid cutting it, since it remains one of the most expensive parts of the machine;
- feed with special rollers to work at high speeds;
- no “witness” with the cut on the Bi-tree;
- total operator safety as there are no metal-metal collision points between the introducer and the belt, and has 2 splinter guard barriers and 2 backstop barriers according to the latest directives;
- Top of the class for silence: it has a system where the motor is anchored that absorbs the inertia of the same; A perfect workmanship guarantees a non-welded structure, but pinned and bolted, anti-deformation: practically a do-it-yourself, with total elasticity, absorbing all work stresses and vibrations;
- All mechanical parts are easily accessible for simple and convenient maintenance;
- Rich control panel for easy and safe work;
And also:
- Ammeters in sight for motor absorption control;
- Inverter to prevent the wood-blade ratio from being exaggerated, without causing any damage, safeguarding the transmission components;
- Special steel shaft, centesimal ground, with balancing of the same at 4,000 revolutions;
- Large diameter blade holder shaft to avoid stresses of the same;
- Hard aluminum spacer rings to avoid rust formation in the case of wet wood processing, in addition to the supply of very low thickness steel rings for sharpening correction;
- Special high precision ring nut, unscrewing, and special key for easy opening;
- Independent presser with structure anchored on two chromed stems for easy and precise handling by means of trapezoidal screws and thick nuts, protected by dust caps and wood splinters;
- Perfect parallelism of the pressure group on the work surface;
- It is considered the first in its class ever, with a 20/30 mm steel structure, where all the mechanical parts are anchored;
- Unbeatable quality / price ratio;
- Cutting-edge technology with over 35 years of direct experience in biting We are Trademak, whoever works with our machines will never buy anything from the competition. 100% RELIABILITY and WARRANTY
